The basic operations on pairs—cons, pairs—pair, car, head, and cdr—can tail—can be used to construct list structure and to select parts from list structure, but they are incapable of modifying list structure. The same is true of the list operations we have used so far, such as append and list, since these can be defined in terms of cons, pair, car, head, and cdr. tail. To modify list structures we need new operations.

The primitive mutators for pairs are set-car! set_head and set-cdr!. set_tail. Set-car! The function set_head takes two arguments, the first of which must be a pair. It modifies this pair, replacing the car head pointer by a pointer to the second argument of set-car!set_head.[1]

As an example, suppose that x is bound to the list ((a b) c d) list(list("a", "b"), "c", "d") and y to the list (e f) list("e", "f") as illustrated in figure 3.23. figure 3.24. Evaluating the expression (set-car! x y) set_head(x, y) modifies the pair to which x is bound, replacing its car head by the value of y. The result of the operation is shown in figure 3.25. figure 3.26. The structure x has been modified and would now be printed as ((e f) c d). is now equivalent to list(list("e", "f"), "c", "d"). The pairs representing the list (a b), list("a", "b"), identified by the pointer that was replaced, are now detached from the original structure.[2]

Compare figure 3.25 figure 3.26 with figure 3.27, figure 3.28, which illustrates the result of executing

Original	JavaScript
(define z (cons y (cdr x)))	const z = pair(y, tail(x));

with x and y bound to the original lists of figure 3.23. figure 3.24. The variable name z is now bound to a new pair created by the cons pair operation; the list to which x is bound is unchanged.

The set-cdr! set_tail operation is similar to set-car!. set_head. The only difference is that the cdr tail pointer of the pair, rather than the car head pointer, is replaced. The effect of executing (set-cdr! x y) set_tail(x, y) on the lists of figure 3.23 figure 3.24 is shown in figure 3.29. figure 3.30. Here the cdr tail pointer of x has been replaced by the pointer to (e f). list("e", "f"). Also, the list (c d), list("c", "d"), which used to be the cdr tail of x, is now detached from the structure.

Cons The function pair builds new list structure by creating new pairs, while set-car! whereas set_head and set-cdr! set_tail modify existing pairs. Indeed, we could implement cons pair in terms of the two mutators, together with a procedurefunction get-new-pair, get_new_pair, which returns a new pair that is not part of any existing list structure. We obtain the new pair, set its car head and cdr tail pointers to the designated objects, and return the new pair as the result of the conspair.[3]

Original	JavaScript
(define (cons x y) (let ((new (get-new-pair))) (set-car! new x) (set-cdr! new y) new))	function pair(x, y) { const fresh = get_new_pair(); set_head(fresh, x); set_tail(fresh, y); return fresh; }

Exercise 3.12 The following procedure function for appending lists was introduced in section 2.2.1:

Original	JavaScript
(define (append x y) (if (null? x) y (cons (car x) (append (cdr x) y))))	function append(x, y) { return is_null(x) ? y : pair(head(x), append(tail(x), y)); }

Append The function append forms a new list by successively consing the elements of x onto y. adjoining the elements of x to the front of y. The procedure function append! append_mutator is similar to append, but it is a mutator rather than a constructor. It appends the lists by splicing them together, modifying the final pair of x so that its cdr tail is now y. (It is an error to call append! append_mutator with an empty x.)

Original	JavaScript
(define (append! x y) (set-cdr! (last-pair x) y) x)	function append_mutator(x, y) { set_tail(last_pair(x), y); return x; }

Here last-pair last_pair is a procedure function that returns the last pair in its argument:

Original	JavaScript
(define (last-pair x) (if (null? (cdr x)) x (last-pair (cdr x))))	function last_pair(x) { return is_null(tail(x)) ? x : last_pair(tail(x)); }

Consider the interaction

Original	JavaScript
(define x (list 'a 'b))	const x = list("a", "b");

Original	JavaScript
(define y (list 'c 'd))	const y = list("c", "d");

Original	JavaScript
(define z (append x y))	const z = append(x, y);

Original	JavaScript
z (a b c d)	z; ["a", ["b", ["c", ["d, null]]]]

Original	JavaScript
(cdr x)	tail(x); $response$

Original	JavaScript
(define w (append! x y))	const w = append_mutator(x, y);

Original	JavaScript
w (a b c d)	w; ["a", ["b", ["c", ["d", null]]]]

Original	JavaScript
(cdr x)	tail(x); $response$

What are the missing $response$s? Draw box-and-pointer diagrams to explain your answer.

Add solution

There is currently no solution available for this exercise. This textbook adaptation is a community effort. Do consider contributing by providing a solution for this exercise, using a Pull Request in Github.

Exercise 3.13 Consider the following make-cycle make_cycle procedure, function, which uses the last-pair last_pair procedure function defined in exercise 3.12:

Original	JavaScript
(define (make-cycle x) (set-cdr! (last-pair x) x) x)	function make_cycle(x) { set_tail(last_pair(x), x); return x; }

Draw a box-and-pointer diagram that shows the structure z created by

Original	JavaScript
(define z (make-cycle (list 'a 'b 'c)))	const z = make_cycle(list("a", "b", "c"));

What happens if we try to compute (last-pair z)? last_pair(z)?

Solution

(provided by GitHub user jonathantorres) If we try to compute last_pair(z), the program will enter in a infinite loop, since the end of the list points back to the beginning.

Exercise 3.14 The following procedure function is quite useful, although obscure:

Original	JavaScript
(define (mystery x) (define (loop x y) (if (null? x) y (let ((temp (cdr x))) (set-cdr! x y) (loop temp x)))) (loop x '()))	function mystery(x) { function loop(x, y) { if (is_null(x)) { return y; } else { const temp = tail(x); set_tail(x, y); return loop(temp, x); } } return loop(x, null); }

Loop The function loop uses the temporary variable name temp to hold the old value of the cdr tail of x, since the set-cdr! set_tail on the next line destroys the cdr. tail. Explain what mystery does in general. Suppose v is defined by

Original	JavaScript
(define v (list 'a 'b 'c 'd))	const v = list("a", "b", "c", "d");

Draw the box-and-pointer diagram that represents the list to which v is bound. Suppose that we now evaluate

Original	JavaScript
(define w (mystery v))	const w = mystery(v);

Draw box-and-pointer diagrams that show the structures v and w after evaluating this expression. program. What would be printed as the values of v and w?

Solution

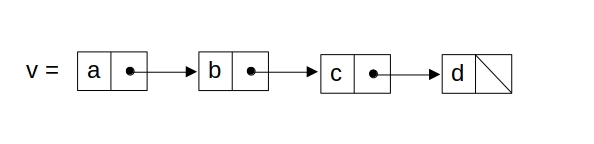

(provided by GitHub user jonathantorres) The application mystery(x) will reverse the list x in-place. Initially v looks like this:

After evaluating const w = mystery(v); the values of v and w become:

The function display prints ["a", null] for v and ["d", ["c", ["b", ["a", null]]]] for w.

Sharing and identity

We mentioned in section 3.1.3 the theoretical issues of sameness and change raised by the introduction of assignment. These issues arise in practice when individual pairs are shared among different data objects. For example, consider the structure formed by

Original	JavaScript
(define x (list 'a 'b)) (define z1 (cons x x))	const x = list("a", "b"); const z1 = pair(x, x);

As shown in figure 3.31, figure 3.32, z1 is a pair whose car head and cdr tail both point to the same pair x. This sharing of x by the car head and cdr tail of z1 is a consequence of the straightforward way in which cons pair is implemented. In general, using cons pair to construct lists will result in an interlinked structure of pairs in which many individual pairs are shared by many different structures.

Original		JavaScript
Figure 3.31 The list z1 formed by (cons x x).		Figure 3.32 The list z1 formed by pair(x, x).

Original		JavaScript
Figure 3.33 The list z2 formed by (cons (list 'a 'b) (list 'a 'b)).		Figure 3.34 The list z2 formed by pair(list("a", "b"), list("a", "b")).

In contrast to figure 3.31, figure 3.33 figure 3.32, figure 3.34 shows the structure created by

Original	JavaScript
(define z2 (cons (list 'a 'b) (list 'a 'b)))	const z2 = pair(list("a", "b"), list("a", "b"));

In this structure, the pairs in the two (a b) list("a", "b") lists are distinct, although the actual symbols are shared. [4] they contain the same strings.[5]

When thought of as a list, z1 and z2 both represent the same list:

Original	JavaScript
((a b) a b)	list(list("a", "b"), "a", "b")

In general, sharing is completely undetectable if we operate on lists using only cons, pair, car, head, and cdr. tail. However, if we allow mutators on list structure, sharing becomes significant. As an example of the difference that sharing can make, consider the following procedure, function, which modifies the car head of the structure to which it is applied:

Original	JavaScript
(define (set-to-wow! x) (set-car! (car x) 'wow) x)	function set_to_wow(x) { set_head(head(x), "wow"); return x; }

Even though z1 and z2 are the same structure, applying set-to-wow! set_to_wow to them yields different results. With z1, altering the car head also changes the cdr, tail, because in z1 the car head and the cdr tail are the same pair. With z2, the car head and cdr tail are distinct, so set-to-wow! set_to_wow modifies only the car: head:

Original	JavaScript
z1 ((a b) a b)	z1; [["a", ["b", null]], ["a", ["b", null]]]

Original	JavaScript
(set-to-wow! z1) ((wow b) wow b)	set_to_wow(z1); [["wow", ["b", null]], ["wow", ["b", null]]]

Original	JavaScript
z2 ((a b) a b)	z2; > [["a", ["b", null]], ["a", ["b", null]]]

Original	JavaScript
(set-to-wow! z2) ((wow b) a b)	set_to_wow(z2); [["wow", ["b", null]], ["a", ["b", null]]]

Original		JavaScript
One way to detect sharing in list structures is to use the predicate eq?, which we introduced in section 2.3.1 as a way to test whether two symbols are equal. More generally, (eq? x y) tests whether x and y are the same object (that is, whether x and y are equal as pointers).		One way to detect sharing in list structures is to use the primitive predicate ===, which we introduced in section 1.1.6 to test whether two numbers are equal and extended in section 2.3.1 to test whether two strings are equal. When applied to two nonprimitive values, x === y tests whether x and y are the same object (that is, whether x and y are equal as pointers).

Thus, with z1 and z2 as defined in figure 3.31 and 3.33, figure 3.32 and 3.34, (eq? (car z1) (cdr z1)) head(z1) === tail(z1) is true and (eq? (car z2) (cdr z2)) head(z2) === tail(z2) is false.

As will be seen in the following sections, we can exploit sharing to greatly extend the repertoire of data structures that can be represented by pairs. On the other hand, sharing can also be dangerous, since modifications made to structures will also affect other structures that happen to share the modified parts. The mutation operations set-car! set_head and set-cdr! set_tail should be used with care; unless we have a good understanding of how our data objects are shared, mutation can have unanticipated results.[6]

Exercise 3.15 Draw box-and-pointer diagrams to explain the effect of set-to-wow! set_to_wow on the structures z1 and z2 above.

Add solution

There is currently no solution available for this exercise. This textbook adaptation is a community effort. Do consider contributing by providing a solution for this exercise, using a Pull Request in Github.

Exercise 3.16 Ben Bitdiddle decides to write a procedure function to count the number of pairs in any list structure. It's easy, he reasons. The number of pairs in any structure is the number in the car head plus the number in the cdr tail plus one more to count the current pair. So Ben writes the following procedure: function

Original	JavaScript
(define (count-pairs x) (if (not (pair? x)) 0 (+ (count-pairs (car x)) (count-pairs (cdr x)) 1)))	function count_pairs(x) { return ! is_pair(x) ? 0 : count_pairs(head(x)) + count_pairs(tail(x)) + 1; }

Show that this procedure function is not correct. In particular, draw box-and-pointer diagrams representing list structures made up of exactly three pairs for which Ben's procedure function would return 3; return 4; return 7; never return at all.

Solution

Original	JavaScript
	const three_list = list("a", "b", "c"); const one = pair("d", "e"); const two = pair(one, one); const four_list = pair(two, "f"); const seven_list = pair(two, two); const cycle = list("g", "h", "i"); set_tail(tail(tail(cycle)), cycle);

Exercise 3.17 Devise a correct version of the count-pairs count_pairs procedure function of exercise 3.16 that returns the number of distinct pairs in any structure. (Hint: Traverse the structure, maintaining an auxiliary data structure that is used to keep track of which pairs have already been counted.)

Solution

// solution provided by GitHub user clean99 function count_pairs(x) { let counted_pairs = null; function is_counted_pair(current_counted_pairs, x) { return is_null(current_counted_pairs) ? false : head(current_counted_pairs) === x ? true : is_counted_pair(tail(current_counted_pairs), x); } function count(x) { if(! is_pair(x) || is_counted_pair(counted_pairs, x)) { return 0; } else { counted_pairs = pair(x, counted_pairs); return count(head(x)) + count(tail(x)) + 1; } } return count(x); }

Exercise 3.18 Write a procedure function that examines a list and determines whether it contains a cycle, that is, whether a program that tried to find the end of the list by taking successive cdrs tails would go into an infinite loop. Exercise 3.13 constructed such lists.

Solution

// solution provided by GitHub user clean99 function contains_cycle(x) { let counted_pairs = null; function is_counted_pair(counted_pairs, x) { return is_null(counted_pairs) ? false : head(counted_pairs) === x ? true : is_counted_pair(tail(counted_pairs), x); } function detect_cycle(x) { if (is_null(x)) { return false; } else if (is_counted_pair(counted_pairs, x)) { return true; } else { counted_pairs = pair(x, counted_pairs); return detect_cycle(tail(x)); } } return detect_cycle(x); }

Exercise 3.19 Redo exercise 3.18 using an algorithm that takes only a constant amount of space. (This requires a very clever idea.)

Solution

Define a fast pointer and a slow pointer. The fast pointer goes forward 2 steps every time, while the slow pointer goes forward 1 step every time. If there is a cycle in the list, the fast pointer will eventually catch up with the slow pointer. function contains_cycle(x) { function detect_cycle(fast, slow) { return is_null(fast) || is_null(tail(fast)) ? false : fast === slow ? true : detect_cycle(tail(tail(fast)), tail(slow)); } return detect_cycle(tail(x), x); }

Mutation is just assignment

When we introduced compound data, we observed in section 2.1.3 that pairs can be represented purely in terms of procedures: functions:

Original	JavaScript
(define (cons x y) (define (dispatch m) (cond ((eq? m 'car) x) ((eq? m 'cdr) y) (else (error "Undefined operation - - CONS" m)))) dispatch) (define (car z) (z 'car)) (define (cdr z) (z 'cdr))	function pair(x, y) { function dispatch(m) { return m === "head" ? x : m === "tail" ? y : error(m, "undefined operation -- pair"); } return dispatch; } function head(z) { return z("head"); } function tail(z) { return z("tail"); }

The same observation is true for mutable data. We can implement mutable data objects as procedures functions using assignment and local state. For instance, we can extend the above pair implementation to handle set-car! set_head and set-cdr! set_tail in a manner analogous to the way we implemented bank accounts using make-account make_account in section 3.1.1:

Original

JavaScript

(define (cons x y) (define (set-x! v) (set! x v)) (define (set-y! v) (set! y v)) (define (dispatch m) (cond ((eq? m 'car) x) ((eq? m 'cdr) y) ((eq? m 'set-car!) set-x!) ((eq? m 'set-cdr!) set-y!) (else (error "Undefined operation - - CONS" m)))) dispatch) (define (car z) (z 'car)) (define (cdr z) (z 'cdr)) (define (set-car! z new-value) ((z 'set-car!) new-value) z) (define (set-cdr! z new-value) ((z 'set-cdr!) new-value) z)

function pair(x, y) { function set_x(v) { x = v; } function set_y(v) { y = v; } return m => m === "head" ? x : m === "tail" ? y : m === "set_head" ? set_x : m === "set_tail" ? set_y : error(m, "undefined operation -- pair"); } function head(z) { return z("head"); } function tail(z) { return z("tail"); } function set_head(z, new_value) { z("set_head")(new_value); return z; } function set_tail(z, new_value) { z("set_tail")(new_value); return z; }

Assignment is all that is needed, theoretically, to account for the behavior of mutable data. As soon as we admit set! assignment to our language, we raise all the issues, not only of assignment, but of mutable data in general.[7]

Exercise 3.20 Draw environment diagrams to illustrate the evaluation of the sequence of expressions statements

Original	JavaScript
(define x (cons 1 2)) (define z (cons x x)) (set-car! (cdr z) 17) (car x)	const x = pair(1, 2); const z = pair(x, x); set_head(tail(z), 17);

Original	JavaScript
(car x) 17	head(x); 17

using the procedural functional implementation of pairs given above. (Compare exercise 3.11.)

Add solution

There is currently no solution available for this exercise. This textbook adaptation is a community effort. Do consider contributing by providing a solution for this exercise, using a Pull Request in Github.
